A Gantt chart is a useful tool for visualizing project timelines and creating schedules. Excel can assist you in this task, and if you're unsure about how to begin, this article will guide you through the process. You'll gain a clear understanding of how to create a Gantt chart in Excel, helping you manage your project deadlines effectively.
What is the Gantt Chart in Excel?
A Gantt chart is a visual tool for project planning, tracking, and management. It shows the tasks, milestones, dependencies, and progress of your project in a horizontal bar chart. A Gantt chart can help you organize your work, communicate with your team, and meet your deadlines.
Excel is a popular and powerful spreadsheet software that can also be used to create Gantt charts. Excel has many features and functions that make it easy to customize and format your Gantt chart according to your needs. You can also use Excel to update and share your Gantt chart with others.
How to Make a Gantt Chart in Excel?
Creating Gantt charts in Excel is a valuable skill for project management. Excel enables professionals to handle their projects more efficiently and ensure that every activity is done on time.
With Template:
Excel offers free Gantt chart templates that professionals can use to manage their activities more easily. These templates are ready-made and customizable according to the project requirements. To use them, simply download a template and fill in the details of the project. The Gantt chart will be generated automatically. Here are some tips on how to make the most of the Gantt chart templates in Excel:
Example 1: Microsoft Project Planner Template

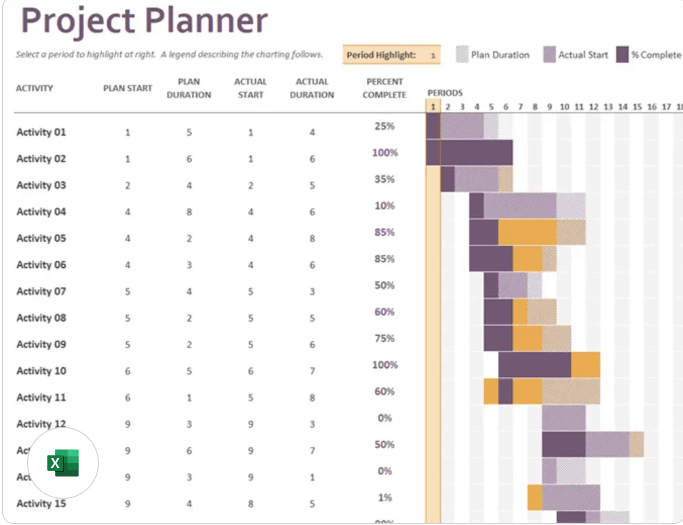

The Microsoft Project Planner Template offers a straightforward yet impactful Gantt chart layout. It enables you to input your activities along with their corresponding dates and start-to-finish timelines. This information is subsequently showcased on the right side of the template, providing you with a clear visual representation of your project's timeline.
How to use the Project Planner template on Excel
Step 1: Launch Excel on your computer and click on “New” in the navigation panel.

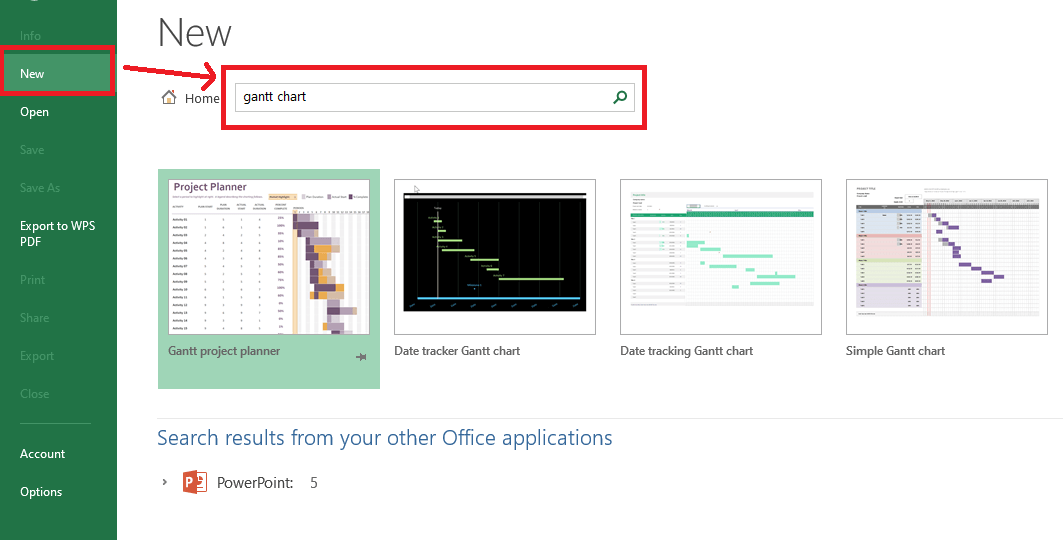

Step 2: Type “Gantt chart” in the search bar and choose the Project Planner template.

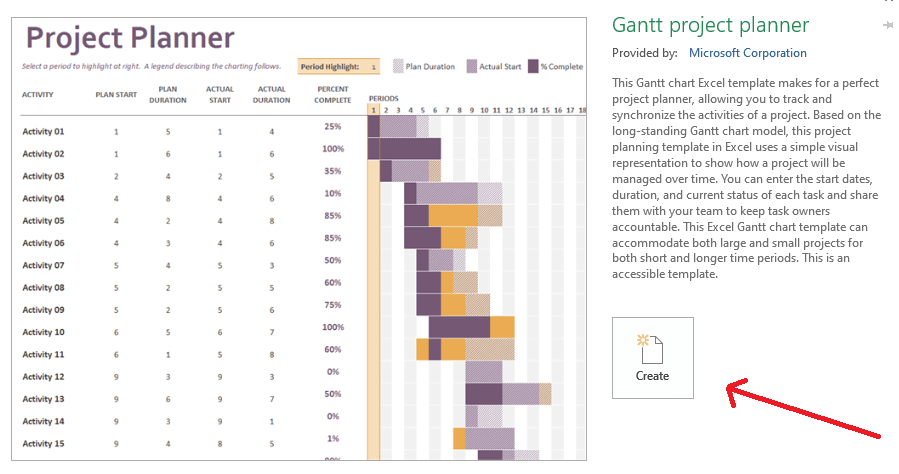

Step 3: A preview of the Gantt chart will appear, click on Create.
Step 4: The chart will be displayed, but modifying it can be a bit tricky. Let’s go through it together to help you master this chart.
Step 5: The legends show different colors to help you identify the workflow.
Step 6: You can change and edit the activity and task names as you wish.
Step 7: The plan starts from period 1. Each activity has a designated start, duration, actual start, and actual duration. The chart will be updated according to the activities with each color indicating if there is a delay or not.
Step 8: To add more activities, simply insert a new row below the existing ones.

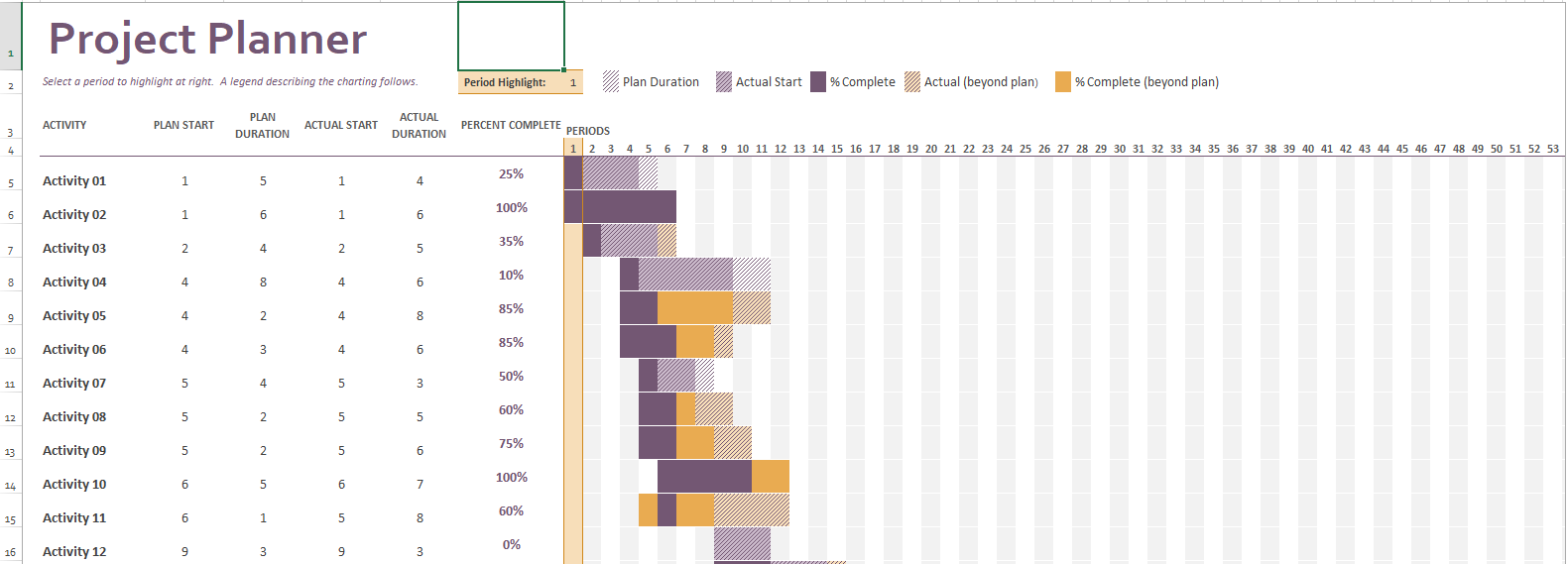

Step 9: To increase the number of periods, click on the last period (60), go to the Home tab, and select Format Painter. This will copy period 60 and its formatting. Then drag to the right to extend the number of periods with the same formatting as the default periods.

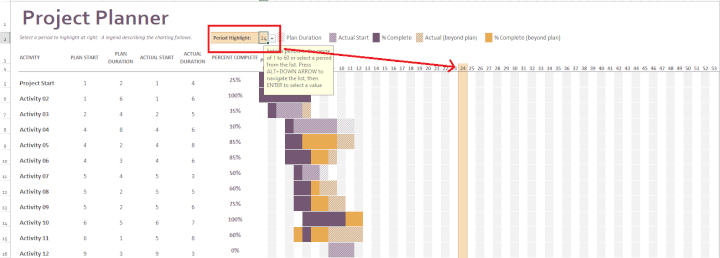

Step 10: You can move and use the highlighted period as a milestone for your project.

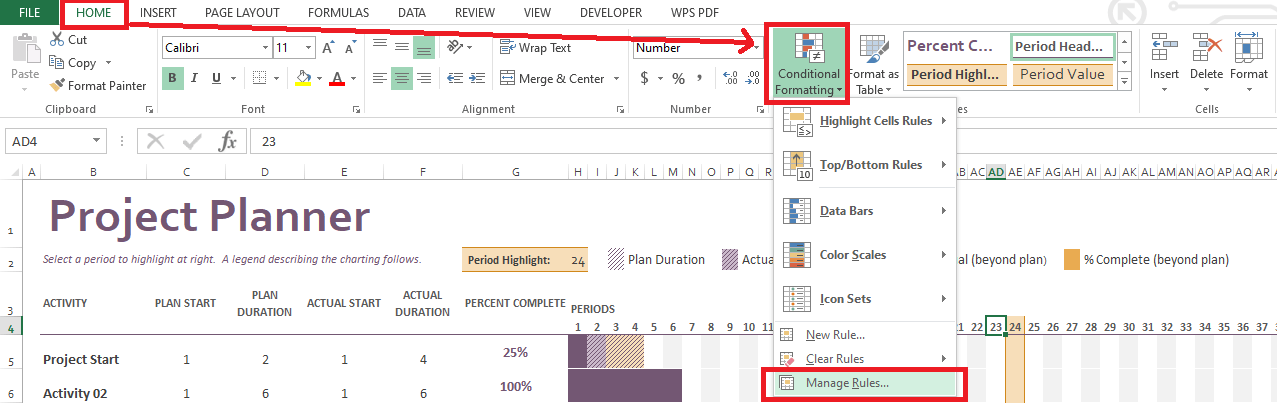

Step 11: To see the formula behind each color combination in the Gantt chart, go to Home > Conditional Formatting > Manage Rules.
And that’s it! This is how you can customize the built-in Excel template and use it effectively to manage your projects and timelines.
Example 2: Gantt Chart Template for Excel

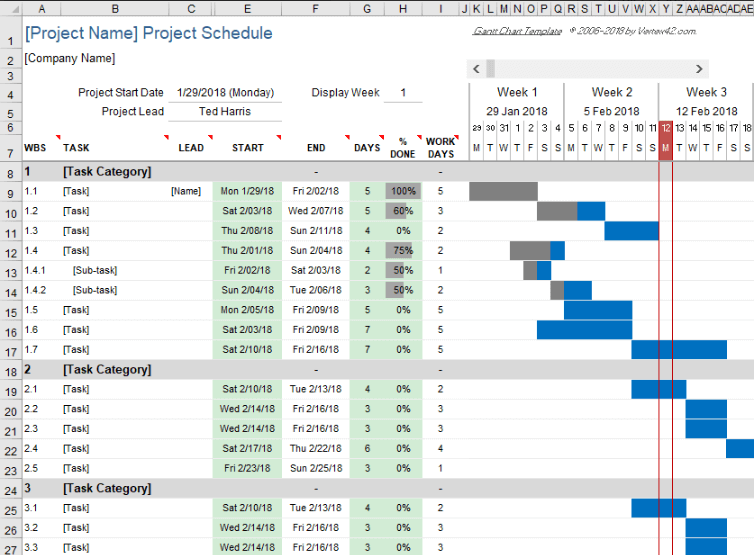

The Gantt chart template in Excel is a versatile tool that lets you customize it by entering your project schedule values, resulting in a clear timeline for task completion. You can tailor the template to your needs by including essential information such as task details, leadership, start and end dates, days required, completion status, and workdays. This information is then presented graphically over a weekly period, making it easier to visualize the project's progress and milestones.
Example 3: Complex Gantt Chart
The Complex Gantt chart, akin to Excel's standard version, brings extra customization with features such as task details (title, description, owner, etc.), completion percentage, scheduled and actual start/finish dates, and milestones for comprehensive project timeline visualization.
Without Template:
Excel has various tools that you can use to create a Gantt chart in Excel with weeks or months as the time scale. A Gantt chart is a useful way to visualize your project schedule and track your progress. In this tutorial, we will show you how to make a Gantt chart in Excel step by step.:

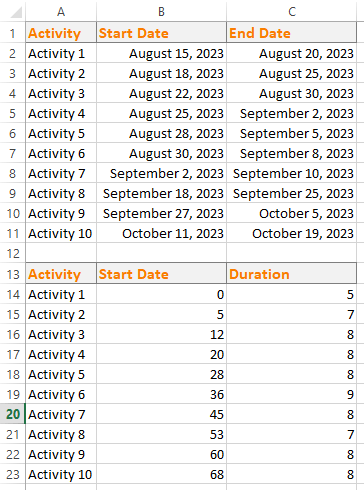

To create a Gantt chart in Excel, we need to start with a project table that has the following columns: activity, start date, duration, and end date. We can use Excel formulas to calculate the duration and end date based on the start date. After we have the project table ready, we can follow these steps to make a stacked bar chart and then turn it into a Gantt chart:

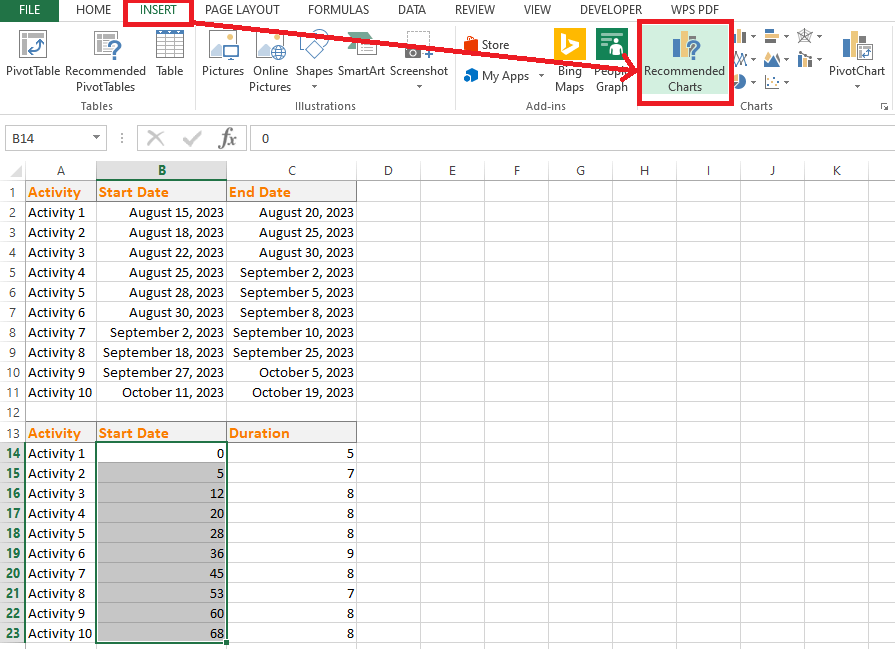

Step 1: Select the “Start Date” column and go to the “Insert” tab. Click on the Recommended Charts option

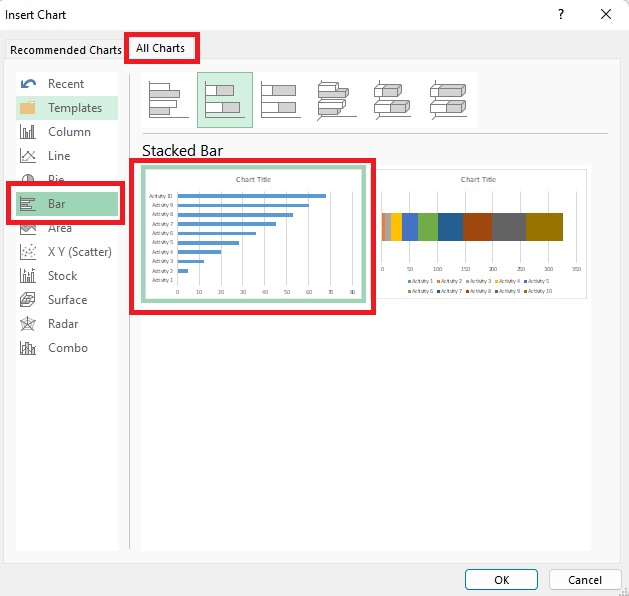

Step 2: Choose the All Charts tab. Choose the Stacked Bar chart style.

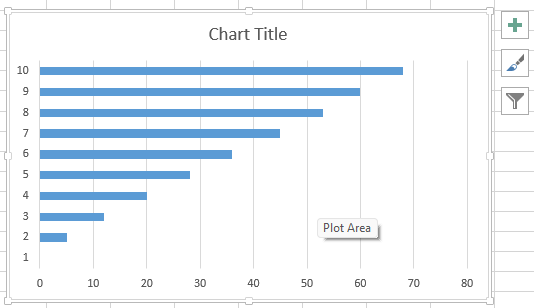

Step 3: A Bar chart will appear on the screen.

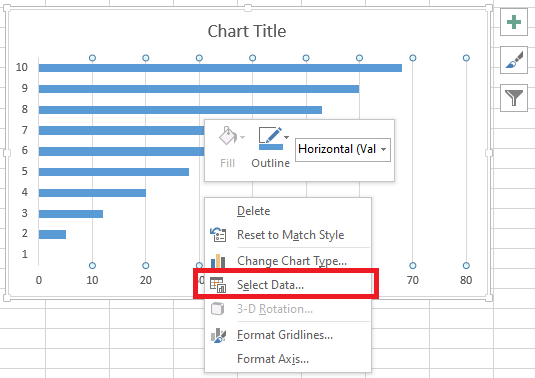

Step 4: We need to make a few changes to the series. To make these changes, right-click on the chart and select Select Data.

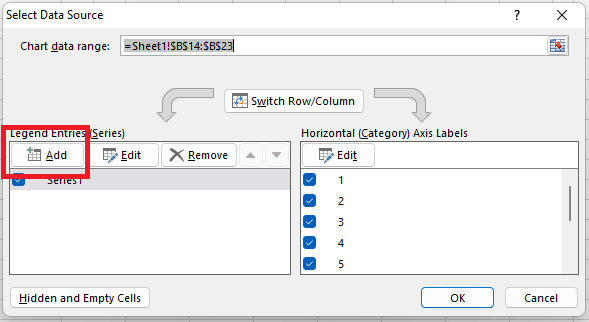

Step 5: In the Select Data Source dialog box, click on the “Add” button under Legend Entries.
Step 5: Add the Duration series. In the “Series Name” field, enter Duration. In the “Series Values” field, select the duration column from the project table.

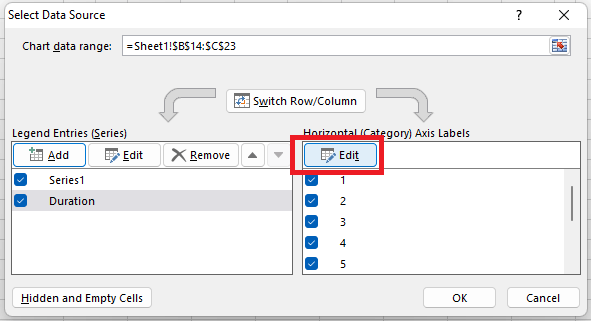

Step 6: To show the Activity names on the chart, click on “Series 1” under Legend Entries and then click on “Edit” under Horizontal (Category) Axis Labels.
Step 7: In the “Axis Label Range” field, select the entire Activity column from the project table and press “OK”.
Step 8: After Adding the Duration column and Editing the Activity series, press “OK”. Press "OK" to exit the "Select Data Source" dialog box.
Step 9: To make this chart look like a Gantt chart, we need to hide the Start Date bars. To do this, click on any Start Date bar to select them all. Next, choose "Format Data Series" from the options available in the context menu.
Step 10: In the "Format Data Series" window, select the "Fill & Line" tab. Under Fill, select “No Fill”. Under Border, select “No Line”. This will make the Start Date bars invisible.
Step 11: To add axis titles, click on the icon at the top right corner of the chart and check the “Axis Titles” box. Then enter the titles for both axes.
Step 12: The Gantt chart is currently showing the activities in reverse order. To fix this, click on any activity name on the y-axis and then right-click. Select Format Axis.
Step 13: In the Format Axis pane, go to the Axis Options tab. Check the "Categories in Reverse Order" box under Axis Position. This will flip the order of the activities on the chart.
You have successfully created a Gantt chart using Excel. This is a useful tool for managing your project schedule and tracking your progress. You can customize the appearance of your chart by changing the formatting and colors of the bars, axes, and titles. You can also add more details to your chart, such as milestones, dependencies, or resources.
Tip:
Your Excel Gant chart can have different looks by adjusting the colors, borders, shadows, and 3-D effects of the bars. You can access these options by opening the Format Data Series window. To do this, right-click on any bar in your chart and choose Format Data Series from the menu that appears.
Highlight project milestones in a Gantt chart by adding vertical lines, distinct markers, and unique colors or shapes to create a clear visual representation of key achievements.
Add conditional formatting to highlight completed, overdue, or in-progress tasks in a chart. Create a column in the project table and select Duration bars. Create a New Rule using a formula to check task status and apply a color.
A well-designed Gantt chart not only conveys information effectively but also engages stakeholders. Experiment with different design elements to ensure your Gantt chart is not only informative but also visually appealing.
If you like how your Excel Gantt chart looks, you can save it as a template and use it again for other projects. Select the chart > Right-click > Save as Template.
